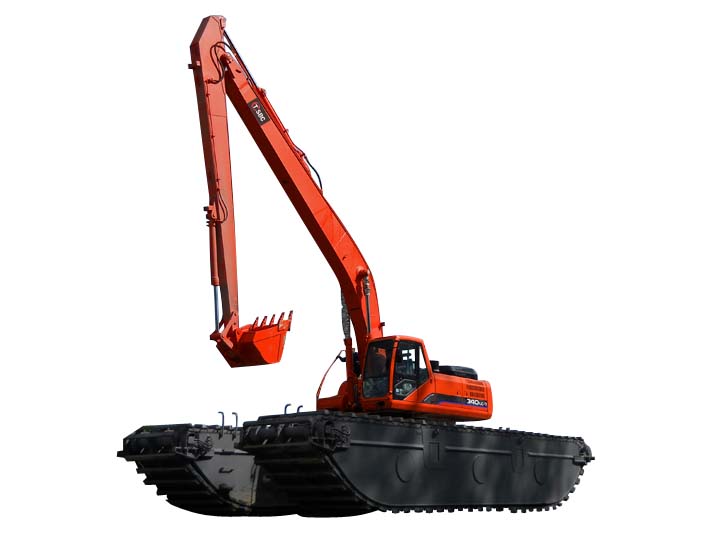

TR 350

TR 350 Designed for 33 - 36 ton Class Excavator





NO PART ft m
A
Track Length On Ground 17??? 1??? 5.20
B
Maximum Track Length 38??? 10??? 11.84
C
Rear Upperstructure Length 11??? 6??? 3.50
D
Overall Length 54??? 5??? 16.59
E
Height Of The Boom 13??? 6??? 4.12
F
Upperstructure Clearance 7??? 5??? 2.27
G
Overall Width (min/max) 20??? 7???/23??? 10??? 6.27/7.27
H
Track Width (min/max) 19??? 7???/22??? 10??? 5.97/6.97
I
Track Gauge (min/max) 13??? 2???/16??? 6??? 4.02/5.02
J
Pontoon Width 6??? 5??? 1.95
K
Minimum Ground Clearance 3??? 9??? 1.13
L
Track Height 6??? 8??? 2.03
M
Overall Cab Height 13??? 9??? 4.20
N
Upperstructure Overall Width 9??? 10??? 2.99
P
Estimated Water Level 5??? 3??? 1.60

- Based on TSBC 17 meter Long Reach Package

- Dimension based on estimation
