• P-01
    AMPHIBIOUS EXCAVATOR
    Higher Travelling Speed and Momentum
  • P-02
    LONG REACH
    Maximizing Digging Depth and Forward Reach
  • P-03
    BUCKET
    Designed for Different Excavation Work
  • P-04
    AMPHIBIOUS EXCAVATOR
    With HSP TRACK SHOE
  • P-05
    AMPHIBIOUS EXCAVATOR
    Maneuver in Swampy Area or Open Water
  • P-06
    FORK GRAPPLE
    Material Handling Application
  • P-07
    AMPHIBIOUS EXCAVATOR
    With Patented Multi-Synchronous Drive System

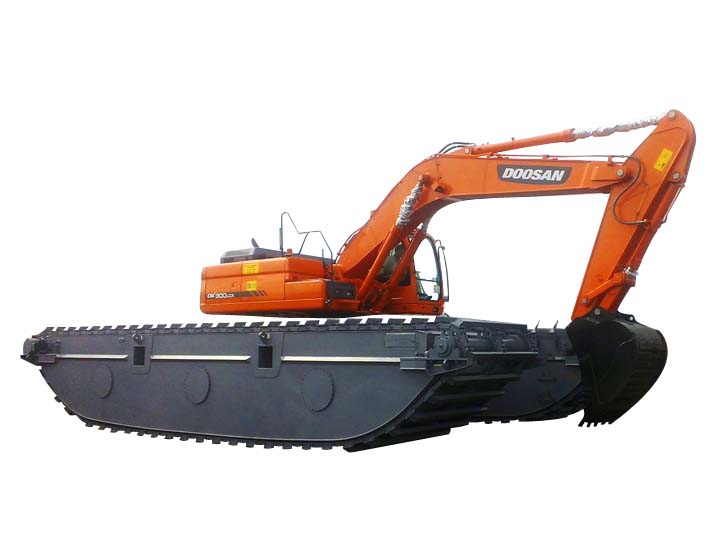

TR 300

TR 300 Designed for 28 - 30 ton Class Excavator





NO PART ft m
A
 Track Length On Ground 16??? 5??? 5.00
B
 Maximum Track Length 35??? 7??? 10.84
C
 Rear Upperstructure Length 10??? 3??? 3.12
D
 Overall Length 50??? 10??? 15.50
E
 Height Of The Boom 13??? 5??? 4.10
F
 Upperstructure Clearance 7??? 2.31
G
 Overall Width (min/max) 18??? 2???/23??? 7??? 5.54/7.20
H
 Track Width (min/max) 17??? 3???/22??? 8??? 5.25/6.91
I
 Track Gauge (min/max) 10??? 11???/16??? 4??? 3.33/4.99
J
 Pontoon Width 6??? 4??? 1.92
K
 Minimum Ground Clearance 4??? 3??? 1.29
L
 Track Height 6??? 8??? 2.03
M
 Overall Cab Height 13??? 7??? 4.13
N
 Upperstructure Overall Width 9??? 9??? 2.98
P
 Estimated Water Level 5??? 7??? 1.70

- Based on TSBC 16 meter Long Reach Package

- Dimension based on estimation


About TSBC Engineering
TSBC Engineering has proudly emerged as one of the fastest growing Asian manufacturer for amphibious excavators, super long reach and other attachments.
